Fiber Optic Adapter/Attenuators

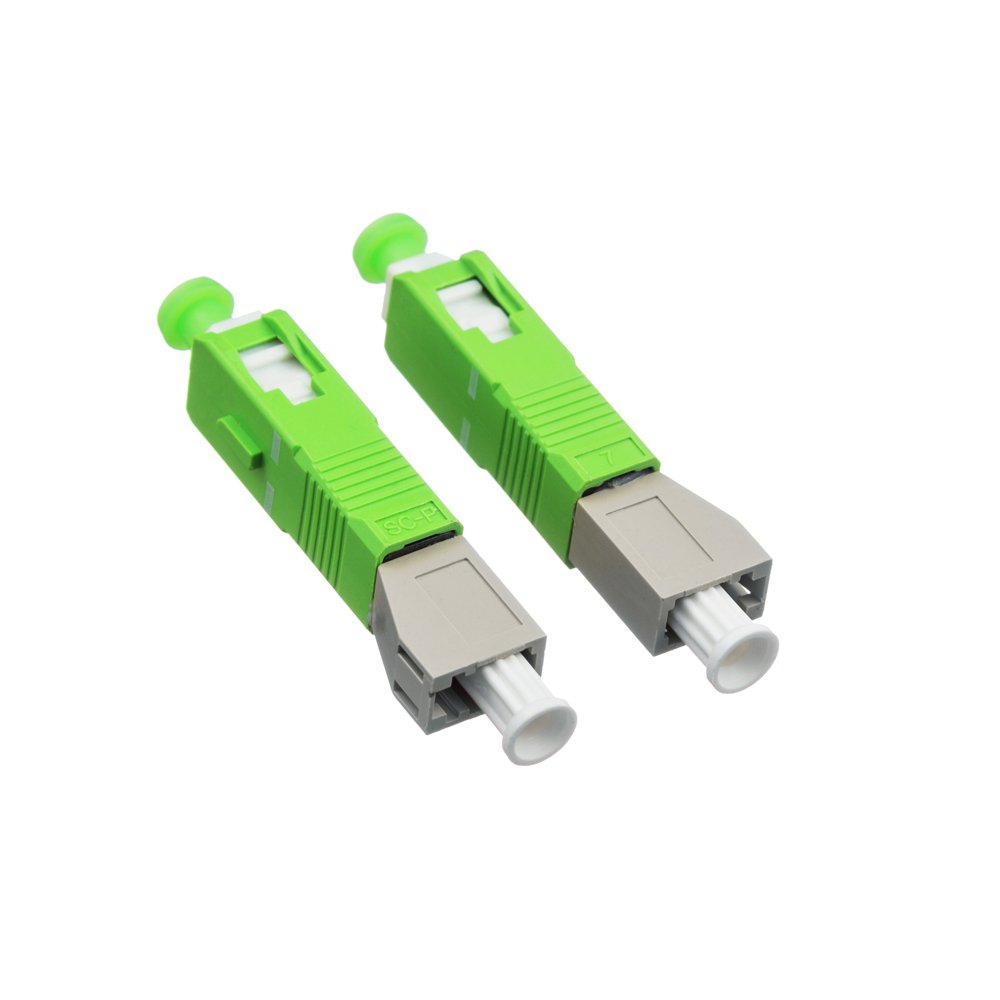

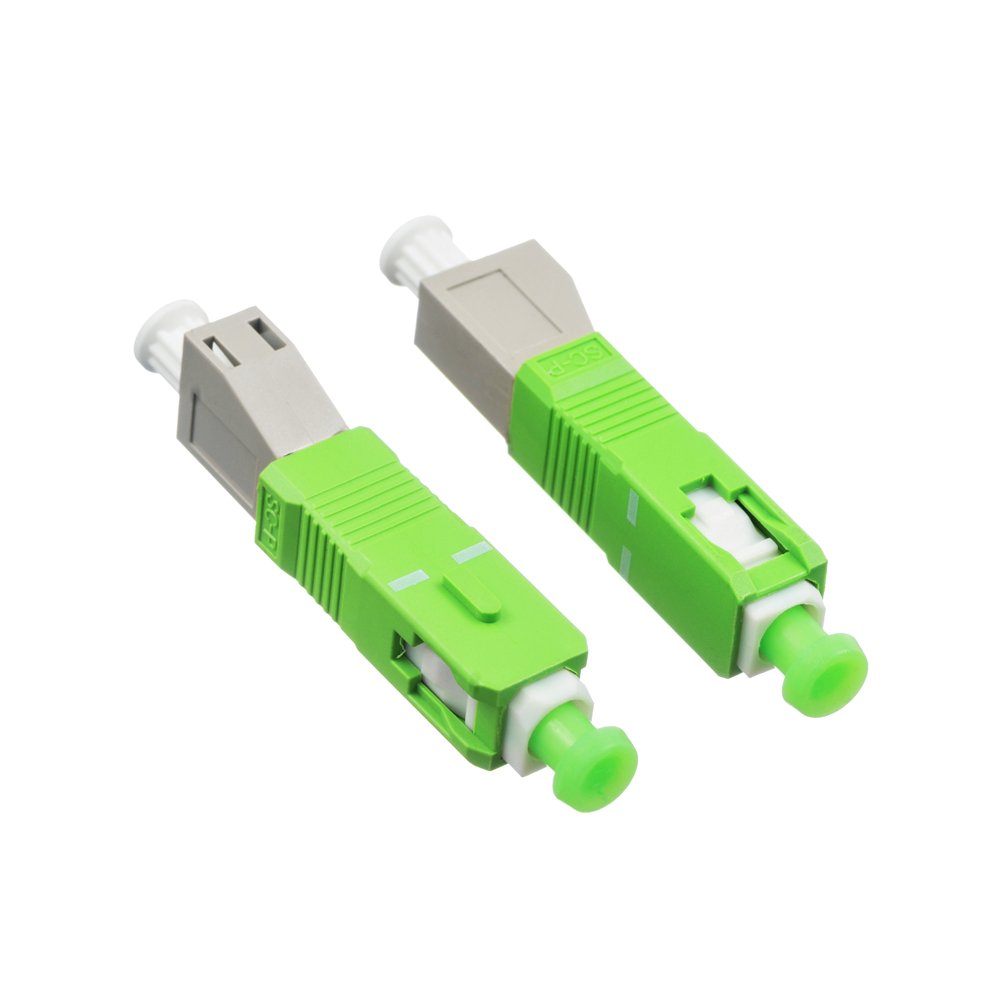

SC APC Male to LC APC Female Hybrid Build-Out Type Fiber Optic Adapter MM OM1 OM2 Flangeless

Item Description

Male-Female hybrid fiber adapter (Build-out Type hybrid fiber adapter) is a fiber adapter with a connector plug (male) end and an adapter socket (female) end. We call it Male-Female Hybrid fiber adapter. Such as ST male at one side, FC female the other side. Female-Female hybrid fiber adapter (Bulk Type hybrid fiber adapter) is a fiber adapter with two different ends. We call it Female-Female Hybrid fiber adapter. Such as SC female at one side, LC female at the other side. Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment. Users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type. The SC to LC hybrid Fiber Adapter is to provide SC Fiber Patchcord to LC Fiber Patchcord Fiber connecting. SC to LC hybrid fiber adaptors combine SC plastic fiber adapter with LC plastic fiber adapter, allow Mating of two different diameter ferrule Fiber Patchcord connecting. AnetFiber provides both Male-Female and Female-Female hybrid fiber adapters bridging popular connector types, such as ST, FC, SC, LC, MU, FDDI, E2000, MPO. They are precision made and manufactured to demanding specifications.
