Fiber Optic Adapter/Attenuators

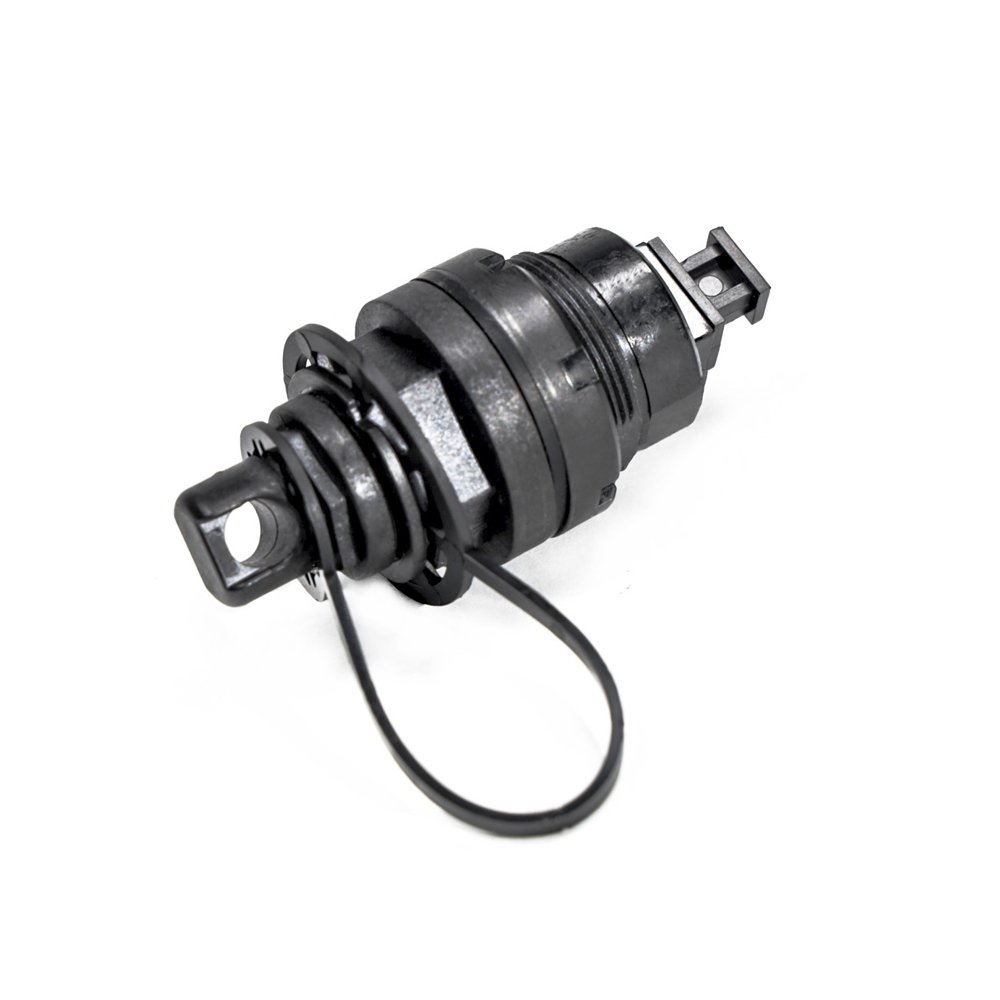

Outdoor IP68 ODVA MPO Fiber In-line Adapter with Dust Cap, Key up Down Bulkhead Fiber Optic Waterproof Connector Adaptor
Outdoor IP68 ODVA MPO Fiber In-line Adapter with Dust Cap, Key up Down Bulkhead Fiber Optic Waterproof Connector Adaptor
Item Description
Outdoor Fastconnect MINI MPO Fiber Optic Waterproof Connector Adaptor, it can be connected with Huawei MPO System and Solutions. One side connected with MINI MPO Connector, another side connected with Standard MPO Connectors. ODVA socket / adapter is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities. These ODVA adapters, together with IP67 rated compact RRH/RRU Helix cover connectors that have fast coupling. And these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower. The ODVA-MPO connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The MPO cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68.
Enquiry
Outdoor IP68 ODVA MPO Fiber In-line Adapter with Dust Cap, Key up Down Bulkhead Fiber Optic Waterproof Connector Adaptor
Features
● Connectors material: PEI;
● Waterproof level:IP67;
● Fire protection classification:UL94-V0;
● Temperature range :–40℃to +90℃;
● Acid and alkali resistance, Ultraviolet resistanc;
● High mechanical strength performance;
● Compatible with the Huawei closure Instruction;
Applications
● FTTH Application
● Fiber optic communications in harsh outdoor environments
● Outdoor communication equipment connection
● Waterproof fiber equipment SC port
● Remote wireless base station
● FTTx FTTA wiring project
