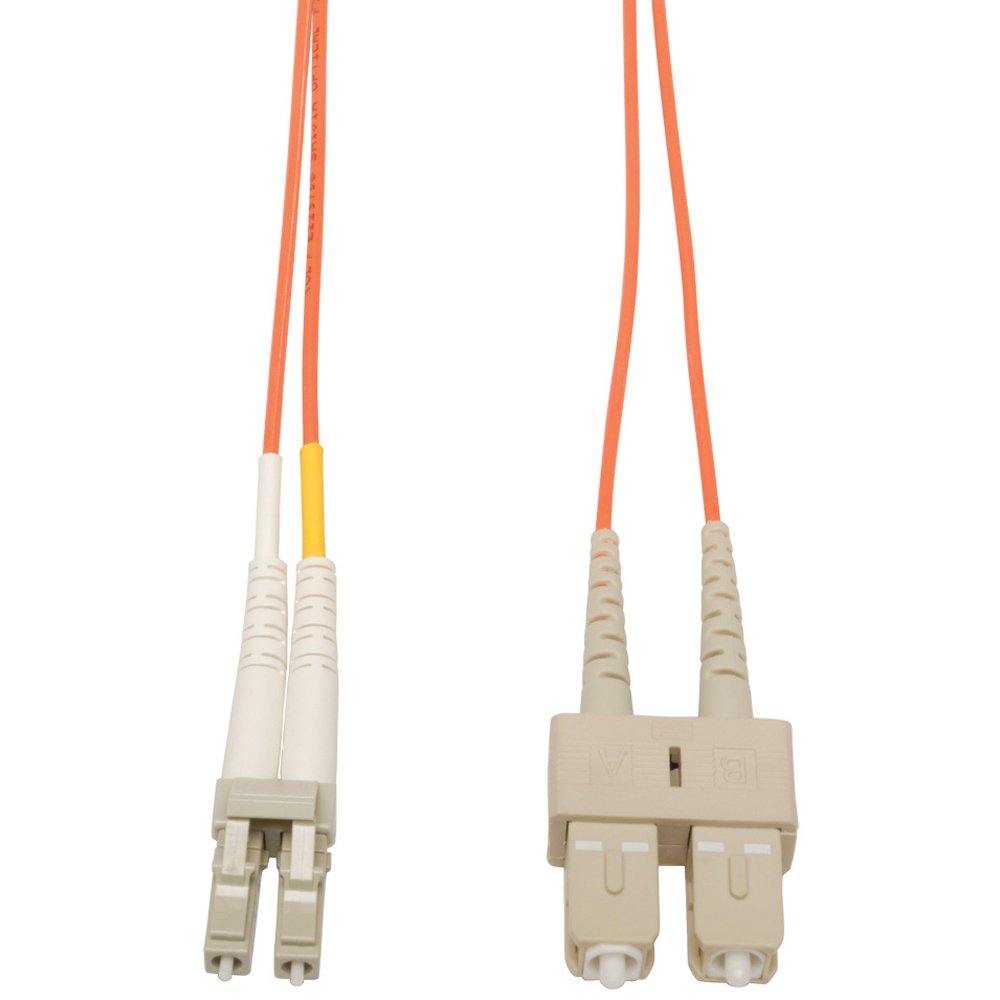

LC UPC to SC UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
Features
● All assemblies are machine polished providing highest quality
● Multimode 62.5/125um 100Mb OM1 fiber optic cables
● Insertion loss per connection: 0.15dB typical; 0.30dB maximum
● Patch cords are tested to support network transmission speeds up to 100Mb/s for link lengths up to 600 meters with an 850nm source
Technical Properties
● Connector type: LC – SC
● Insertion: Multimode ≤ 0.15dB typical / ≤ 0.30dB maximum
● Return Loss: PC ≤ 35dB
● Jacket Type: LSZH
● Polish Type: PC
● Operating Temperature: -40 to +85°C
● Flammability: IEC 60332 Part 3
Benefits
● Low insertion loss / Low reflectance
● Flawless end face
● Excellent environmental stability and reliability
● (All specifications are in accordance to GR-326-CORE)
Applications
● CATV, Metro, Test equipment
● Telecommunication networks
● Local area networks (LANs)
● Wide area networks (WANs)
● Premise installations
● Data processing networks
Enquiry
LC UPC to SC UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable.
Product Description
This is a 30m LC (male) to SC (male) orange duplex riser-rated fiber patch cable. An OM1 cable has a core size of 62.5 microns that can support 10 Gigabit Ethernet at lengths measuring up to 33 meters. It is most commonly used for 100 Megabit Ethernet applications. This optical fiber, nonconductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.
