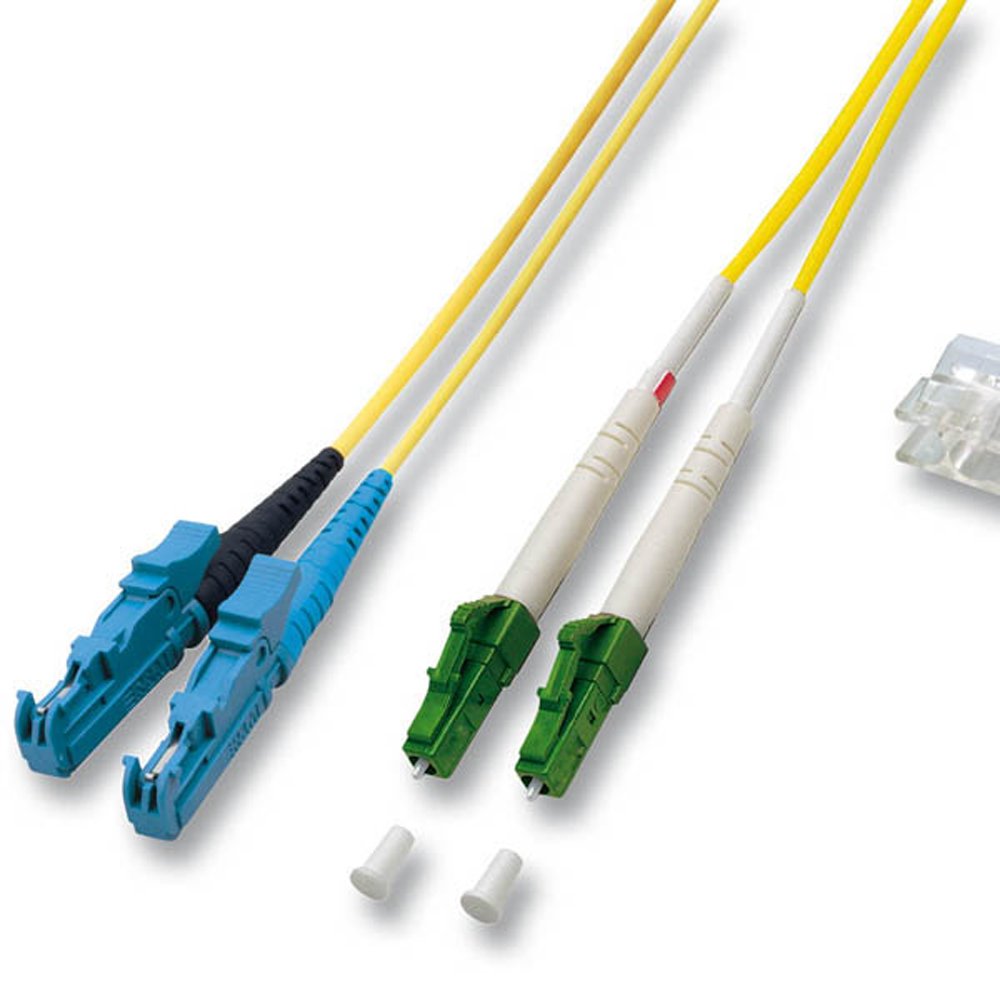

LC/APC to E2000/UPC Single Mode 2.0mm Dumplex Patch Cord
Key Features
► Latched push-pull connector.
► Automatic metal shutter for dust protection and laser safety.
► All optical functional parts are protected.
► High performance connector.
► One-piece design for easy termination.
► Clip available for duplex setup, polarity flipping without tool.
► Cable low smoke and free of halogen (LSFH).
► Available in various lengths from 1m to 10m.
Applications
► High bit rate data transmission;
► Telecommunication networks;
► Data processing networks;
► Metro applications;
► Testing instruments;
► Military, medical and industrial;
► Active device termination;
► CATV system;
► Active device terminations;
► LAN / WAN;
► FTTx (including FTTB, FTTC, FTTD, FTTH).
Enquiry
LC/APC to E2000/UPC Single Mode 2.0mm Dumplex Patch Cord
Product Description
LC (Lucent Connector) type connectors have 2.5 mm diameter ferule structure; LSH (E2000) type connectors are designed with a protection cover for the ferrule. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure.2.0 mm diameter patch cord cables are manufactured with ITU-T G657.A2 bend sensitive fibers, then assembled at one end with LC type; other end with LSH type connectors. The LSH connector is compatible with E2000 connector standards.
