Fiber Optic PLC Splitters

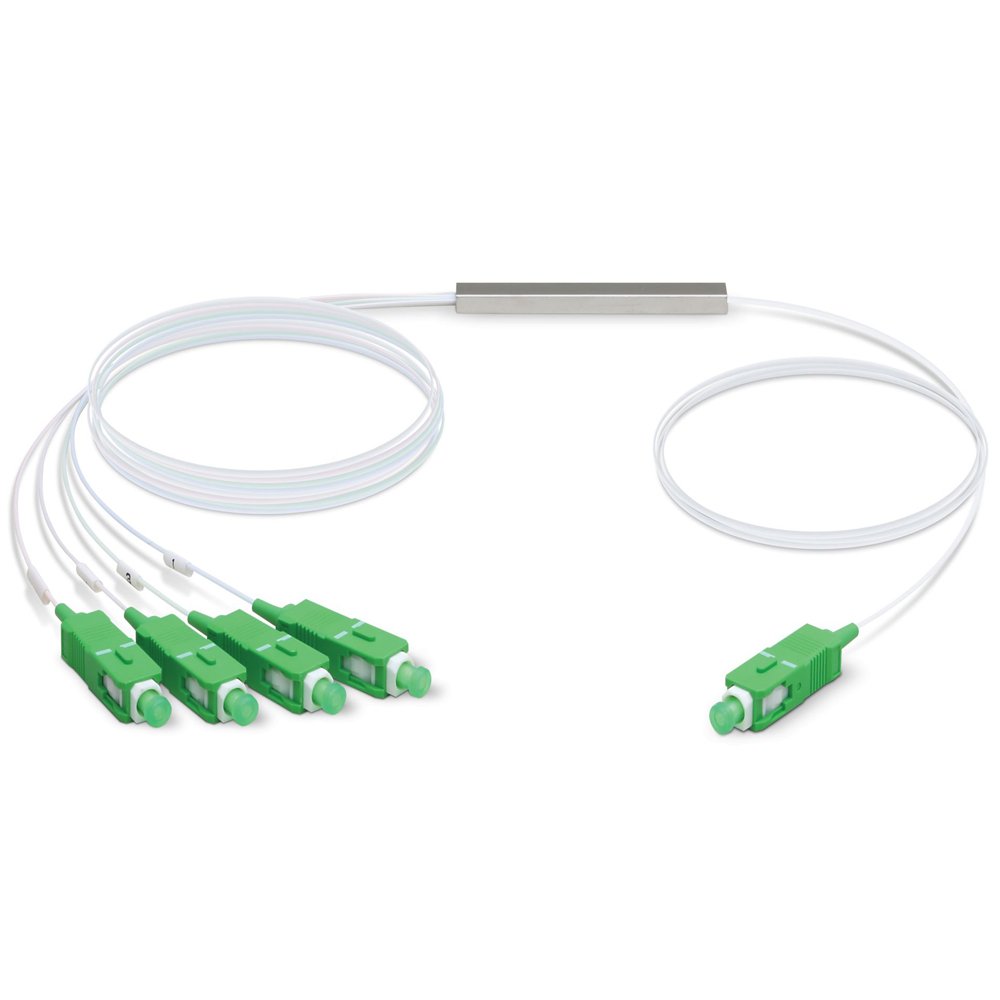

1 x 4 PLC Fiber Splitter, Mini Module, 900μm, SC/APC, Singlemode
Product Highlights
1. Split Input Signal Evenly into 4 Output Ports.
2. ≤7.3dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss.
3. Fully Passive Optical Branching Device.
4. Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
5. 1260~1650nm Broad Operating Wavelengths.
6. G.657A1 Bend Insensitive Fibers for Low Bending Loss.
7. Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications.
Applications
1. LAN, WAN and Metro Networks.
2. FTTH project & FTTX Deployments.
3. CATV System.
4. GPON, EPON.
5. Fiber Optic Test Equipment.
6. Data-base Transmit Broadband Net.
Enquiry
1 x 4 PLC Fiber Splitter, Mini Module, 900μm, SC/APC, Singlemode
Product Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.
